Product
Available
Maximum operating force (N) =4
Current rating / 250 V AC (A) =5
Lever =LEVIER A GALET COURT REGLABLE Q
Other information =SORTIES FRONTALES
Connection type =W2 BORNES A SOUDER
Function =INVERSEUR
Technology =MICROSWITCH

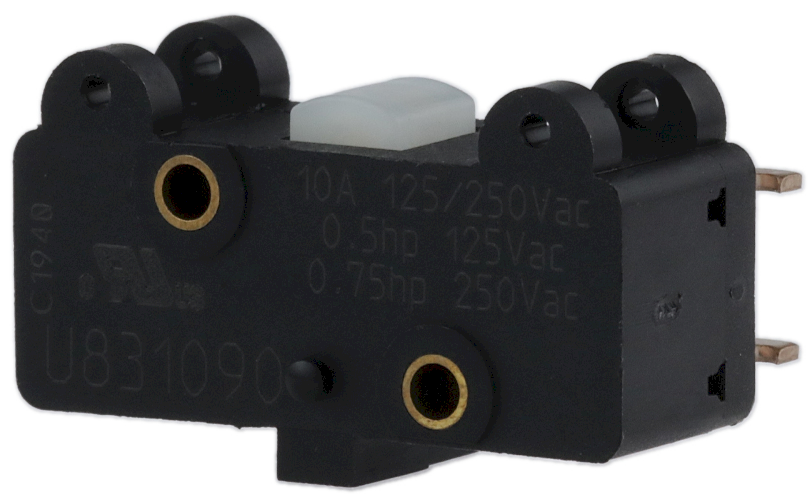

Microswitch, Classic, Double break, Front outputs, 83109 Series, Standard 831090, Snap action, Changeover - SPDT (form Za), Solder terminals, with Adjustable short roller lever Q
Reference : 83109020
Technical sheet
No additional information
