Product
Available
Maximum operating force (N) =4
Lever =ACTIONNEUR A BILLE B9
Other information =AXE LONG
Other information =SORTIES FRONTALES
Current rating / 250 V AC (A) =5
Connection type =W2 BORNES A SOUDER
Function =INVERSEUR
Technology =MICROSWITCH

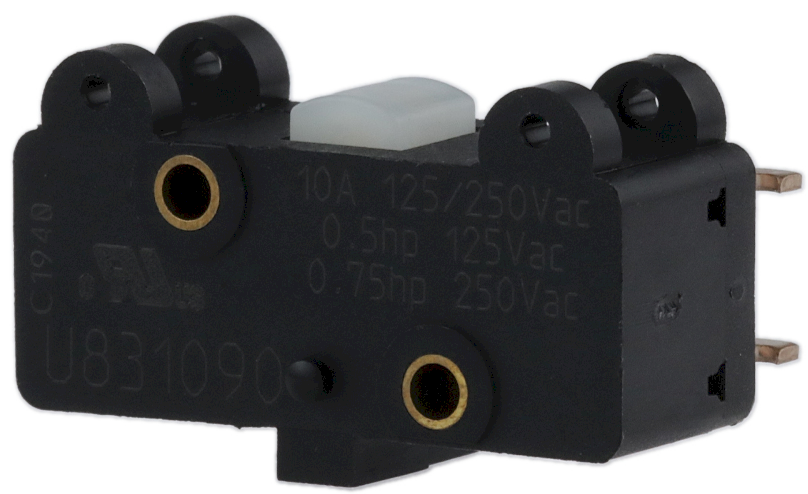

Microswitch, Classic, Double break, Front outputs, 83109 Series, Standard 831090, Snap action, Changeover - SPDT (form Za), Solder terminals, Long shaft, with Ball actuator B9
Reference : 83109074
Technical sheet
No additional information
