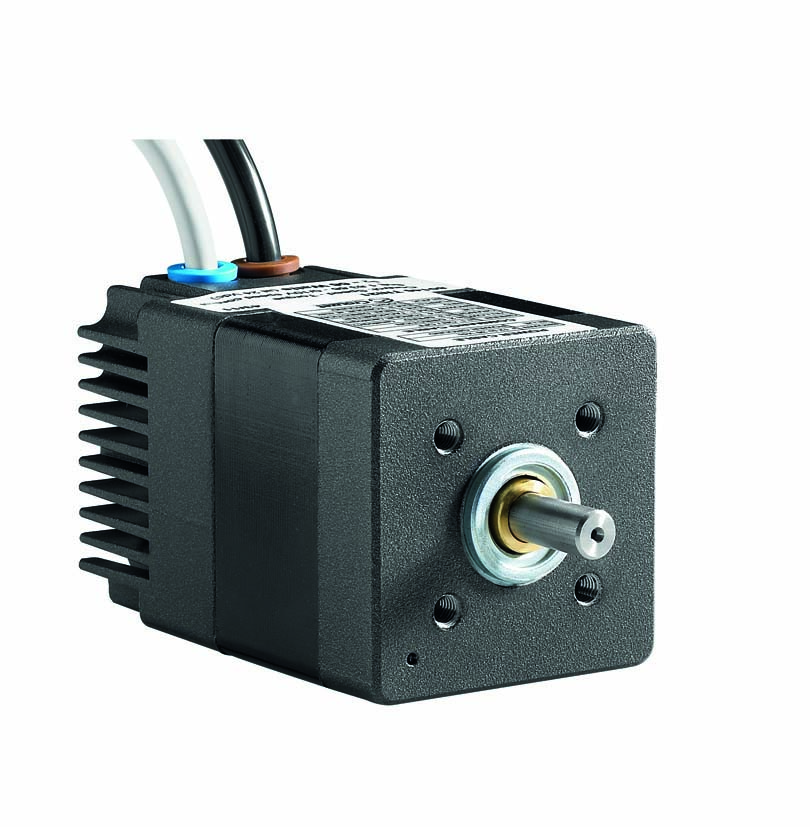

80180051 - SQ57 Motor 100W 12-32Vdc + Drive TNi21 0-10V + Brake

SQ57 Motor 100W 12-32Vdc + Drive TNi21 0-10V + Brake-1

Documents to download

Datasheet EN (PDF)

0ku1o-EN_TNi21_80180051.pdf - 306,05 Ko

3D drawing (STP)

7jkqg-80180051.zip - 477,25 Ko

Motors Overview EN (PDF)

gzybt-2018_MOT_OV_67523001C_EN.pdf - 3,16 Mo

Motors Overview FR (PDF)

c8nuv-2018_MOT_OV_67523001C_FR.pdf - 3,17 Mo

Interested in this product ? Contact us !

Product

Available

TechnologyDCMIND BRUSHLESS

Direction2 SENS

Output100 W

Voltage12/32 VDC

Speed output4000 RPM

Lifetime20 000 HEURES

Speed setting0-10V

OptionFREIN

DCmind Brushless Motor 801800 TNi21 100W Speeds=4000RPM (at 24V) Vdc=12-32 Reg.Loop=4_Quadrant Speed.Driv=0-10V Torque.Driv=0-10V Program=79298071 Brake=FM_0.5Nm

Reference : 80180051

No additional information
